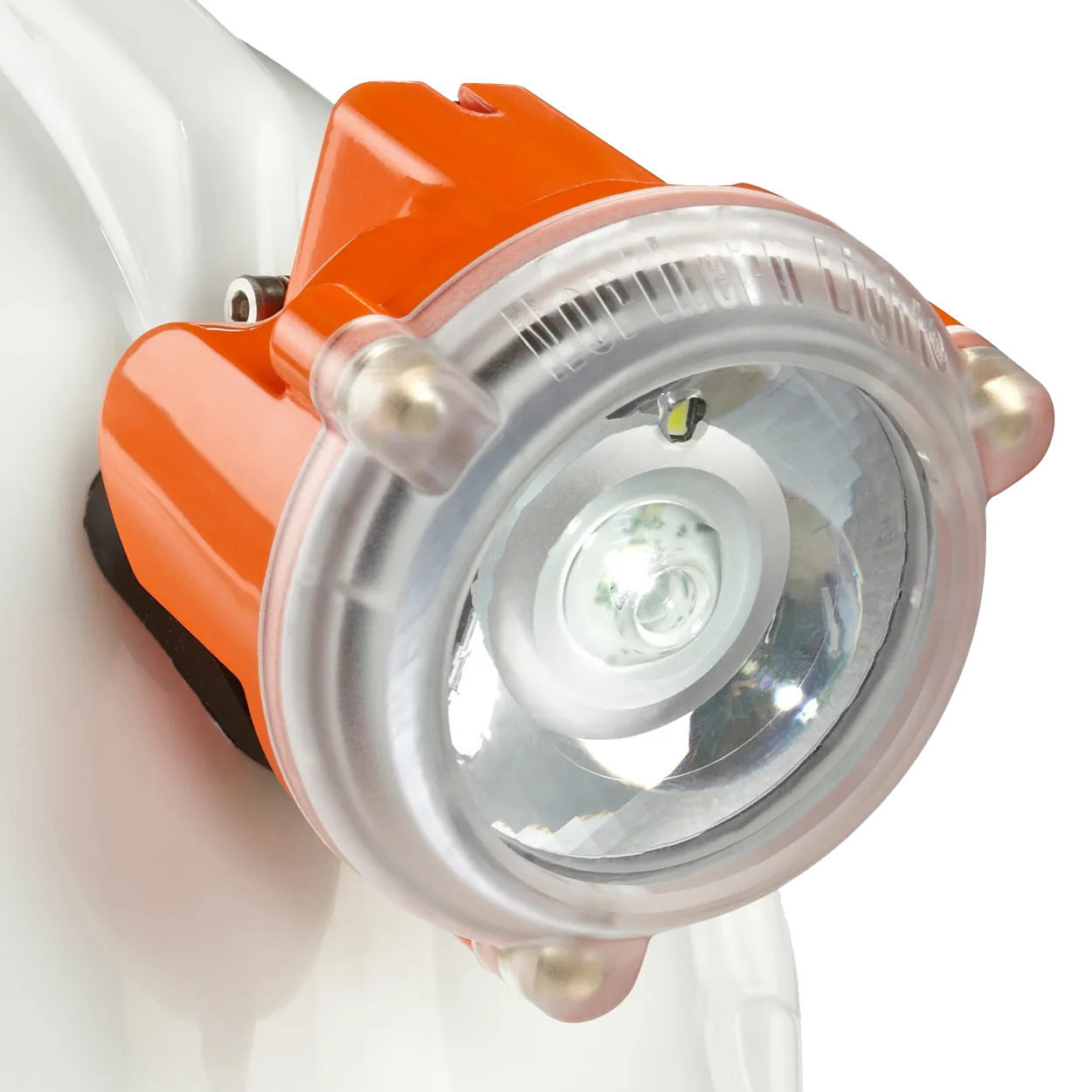

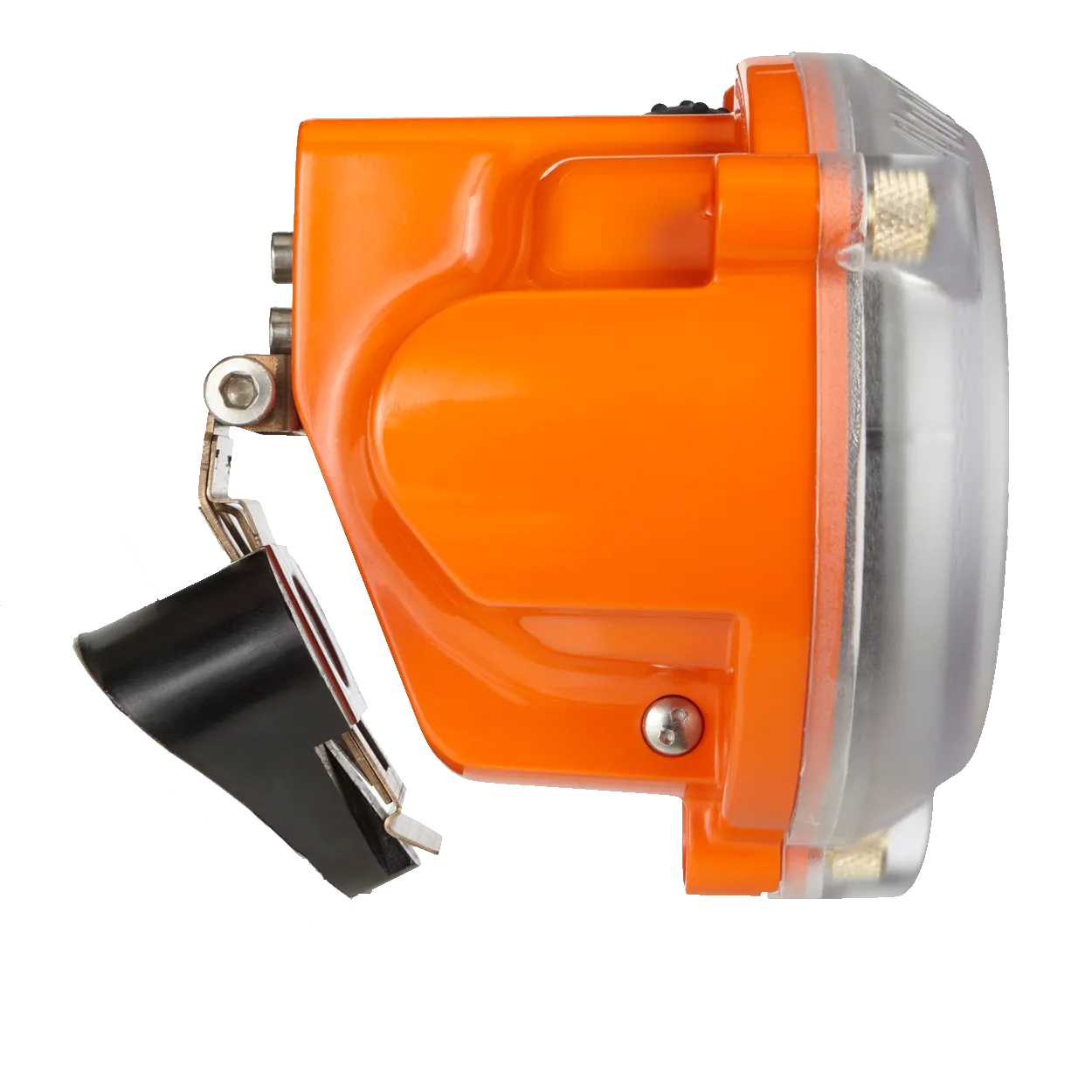

The Genesis is built upon the technological advancements of the award-winning Polaris, the Genesis cap lamp has the capacity to combine tracking tags, while keeping the battery and light source in a single enclosure. Choose from a variety of RFID or Wi-Fi tags, all powered by the Genesis high capacity battery. The Genesis maintains the superior light pattern consistent with all NLT lamps, providing a perfectly focused spot. The battery is field replaceable by your authorized NLT distributor. Certified MSHA Intrinsically Safe as a standalone lamp and with Aeroscout WiFi tracking tags.
- Charge Time: 10 hours
- Battery Discharge Time: Main LED > 12 hours; Secondary LED > 40 hours
- Battery Lifecycle 500 Minimum
- LUX Minimum 4,000; typical 5,500
- Primary LED Life: 20,000 hours; Secondary LED Life 20,000 hours
- Weight 6.6 oz (187 GR)
- LUX Minimum 4,000; typical 5,500
- Charger configurations: Single, 10 and 24 unit modules 48 unit rack;
- 12V DC adapter for vehicle connection
- Charger Power Source: AC line voltage range from 120V /- 10%, 220V /- 10%,
12V AC input can also be used in case of retrofit to existing racks and transformers - Charger Temperature Range: 5°C – 35°C / 41°F – 95°F
(Optimum: 15°C – 20°C /Lamp Storage Temperature 0°C – 60°C / 32°F – 140°F
(Optimum 10°C – 20°C / 59°F – 68°F) 50°F – 68°F) - Primary LED Life: 20,000 hours; Secondary LED Life 20,000 hours
- Ingress Protection IP 65
- Operating Ambient Temperature: Ta = 0°C – 60°C / 32°F – 140°F
- Charging Current: 300mA
-
- Emergency Flashing Activated with 5-second hold-down
- Certified MSHA Intrinsically Safe as a standalone lamp and with Aeroscout WiFi tracking tags
