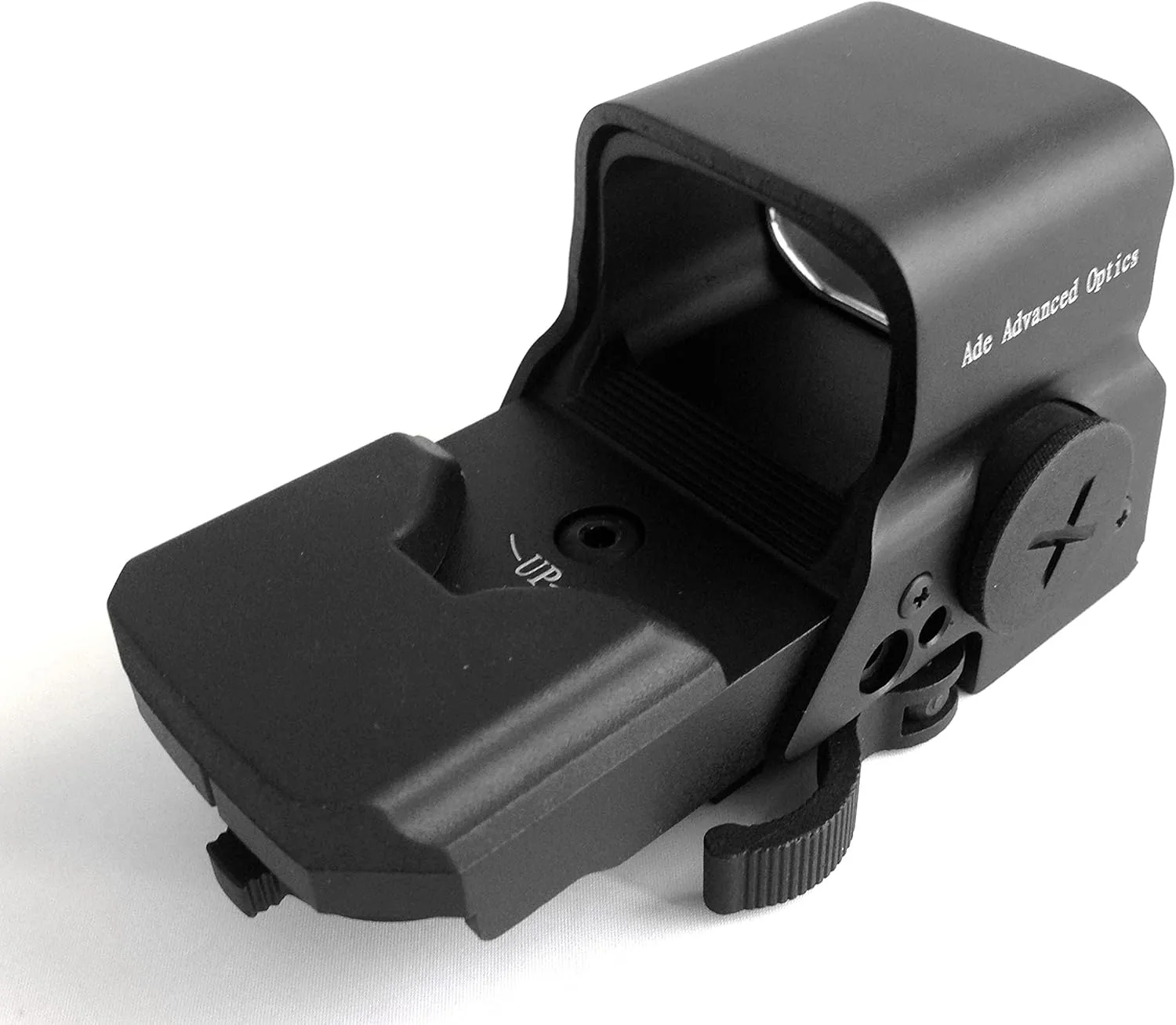

- 8 Kinds of Reticle 5 adjustable brightness settings. Quick detach pica tinny/weaver mount. 1MOA; Low power consumption for long battery life
- Quick detach mounting system. Aluminum Body with metal protective shield
- Unlimited eye relief. Water-resistant and shockproof. Parallax corrected. Wide field of view. Dimension:108x53x62mm. Weight:8.6oz
- Compatible with magnifiers or NVGs. Clocking Wind age/Elevation adjustments. The Graphic Figure on the manual comes with the product
- Built-in Rechargeable Battery with Charging indicator light. Light automatically turn off after fully charged. Charging cable included. The universal battery part number is LIR2023
FEATURES: 8 reticle brightness settings No need to change battery Electronic switch button Wide field of view Low power consumption. Clocking Wind age/Elevation adjustment method Compatible with magnifiers or NVGs MOUNTING Whilst in Quick Detach (QD) dovetail base version, please use QD shaft for adjustment and the rail needs to be as parallel as possible to the grooves of the weaver-style base. Loosen the shaft will set the base to stretch while tighten the shaft to end will make the base fixed. To change the shaft tension, loosen the shaft, clock wisely rotate the bolt of shaft link will increase tension and counter-clock wisely rotate will decrease tension. Make sure the dot sight is fully seated onto the base and carefully tighten the mounting screws. For additional security, a drop of thread-locking fluid can be added to the screws. TECHNICAL SPECIFICATIONS: Reticle color Red/Green/Red Green Reticle brightness 1-5 and off Magnification 1x Objective lens size 39x27mm Eye relief unlimited Parallax ≤3' Wind age/elevation Range 30' Adjustment method Clocking adjustment MOA Adjustment 1 MOA Body material aluminum Mount type Weaver/pica tinny Operation temperature -20℃ ~ 60℃ Dimensions 108x53x62mm weight 245g.
